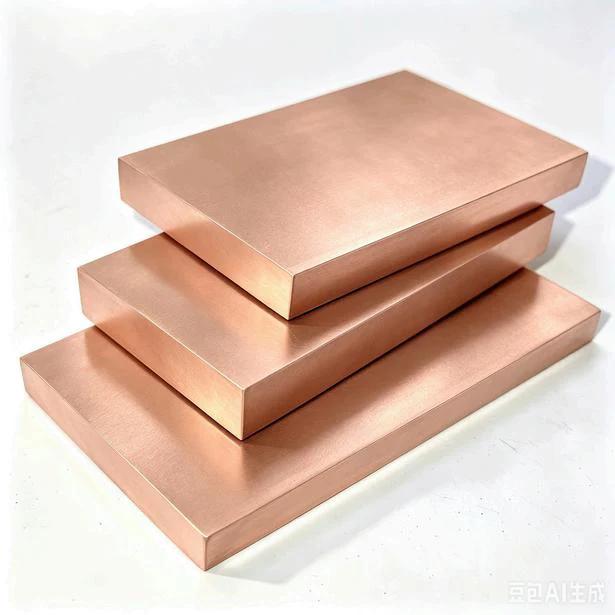

ASTM QSN12-2 RG12 Tin Bronze Plates And Blocks

Choosing our ASTM QSN12-2 RG12 Tin Bronze Plates and Blocks means choosing ultimate wear resistance and reliable corrosion resistance. This material is specifically designed to address the pain points of industrial applications under high loads, high friction, and complex corrosive environments. Thanks to a high tin content of 11%~13% and the addition of 1.5%~2.5% nickel, a hard Cu₃Sn phase is formed within the material, refining the grain size. This allows it to maintain excellent tensile strength (≥550 MPa in cast state) while possessing outstanding friction-reducing properties. Whether in seawater, fresh water, or under steam and weak acid/alkali chemical conditions, it maintains an extremely low corrosion rate, ensuring your equipment remains robust and reliable even after tens of thousands of hours of operation. We not only offer standard specifications but also support comprehensive non-standard customization, from materials and dimensions to tolerances, striving to be the most robust and flexible link in your supply chain.

Why is RG12 the "all-rounder" among tin bronzes?

1. Performance Barriers Under Harsh Conditions: Ordinary tin bronze may degrade in performance at 300°C, while our ASTM QSN12-2 RG12 Tin Bronze Plates and Blocks, due to the addition of nickel, have significantly refined grains. It can operate continuously for short periods at 350°C and has a corrosion rate of less than 0.02 mm/year in seawater and weak acid/alkali environments. This makes it the ideal standard for propeller bushings, corrosion-resistant pump bodies, and reactor flanges.

2. Precise Parameter Control and Rigorous Factory Testing: We are faithful executors of data. Every batch of tin bronze plates and blocks undergoes rigorous review in our in-house laboratory: Chemical composition: Spectroscopic analysis ensures precise proportions of Cu, Sn, Ni, and P elements.

Mechanical properties: Hardness is consistently controlled at HB 180–220, guaranteeing excellent turning and grinding performance.

Internal flaw detection: Five specialized pieces of equipment, including flaw detection labs, ensure the castings are free of porosity and inclusions, eliminating quality issues "invisible to the naked eye."

We support factory visits at any time. You will witness the complete chain from electric furnace smelting to precision machining, rather than facing a vague inventory list.

Our ASTM QSN12-2 RG12 Tin Bronze Plates and Blocks use pure copper, high-purity tin, nickel, and phosphorus raw materials, undergoing five core processes: electric furnace smelting → precision casting → heat treatment → machining → precision testing. The entire process is controllable and traceable, conforming to ASTM C90700 (RG12) and QSn12-2 standards.

Raw Material Selection: Utilizing 99.99% high-purity cathode copper, 11%~13% high-purity tin, 1.5%~2.5% nickel, and 0.1%~0.4% phosphorus, the composition is precisely proportioned to eliminate impurities and ensure performance from the source.

Electric Furnace Melting: 25 industrial electric furnaces with precise temperature control (1100℃~1200℃) ensure uniform alloy composition, free from segregation, porosity, and slag inclusions, improving material density.

Precision Casting: 50 casting machines covering sizes from 15mm to 2000mm, employing a sand mold/metal mold composite process, resulting in high dimensional accuracy and a smooth surface, reducing subsequent machining allowances.

Heat Treatment Strengthening: Dedicated heat treatment furnaces with precise temperature and time control eliminate internal stress, enhance strength and hardness, achieving a tensile strength of 700MPa after heat treatment, with stable performance.

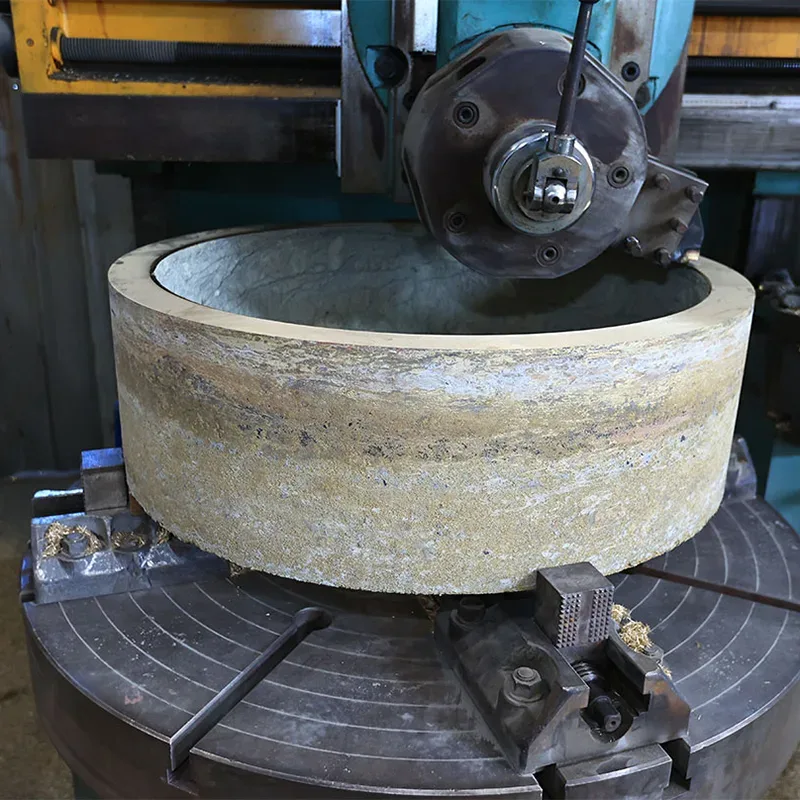

Machining: 30 precision machining machines support customized dimensions and tolerances; simple machining error on one side ≤0.5mm, adaptable to customers' precision assembly needs.

Full-process inspection: 5 professional testing machines (spectral analysis, flaw detection, hardness testing, tensile testing, dimensional inspection), 100% inspection of each batch of products, issuing authoritative test reports to ensure 100% qualified shipment quality.

Process and Capacity: Relying on the close cooperation of 4 professional casting workshops and 2 CNC machining workshops, we achieve seamless connection from blank to finished product.

Multi-specification smelting: 25 electric furnaces operate simultaneously, supporting a full size range from 15mm to 2000mm.

Customized tolerances: We can strictly adhere to your drawings and tolerance requirements. If you require non-standard sized copper nuts or copper washers, our machining equipment (30 units) can respond quickly.

Fast response mechanism: With a strong production capacity of 46,000 tons, even for urgent orders, we can ensure the continuity of your production line by adjusting the furnace schedule.

Application Areas

Mechanical Manufacturing: Heavy-duty bearings, turbines, worm gears, piston pin sleeves.

Marine and Marine Engineering: Propeller bushings, seawater valves, pipeline fittings.

Power Equipment: Bimetallic bearings for internal combustion engines, roll bearings.

New Energy and Environmental Protection Equipment: Emerging wear-resistant connecting parts.

Contact us now for free samples, authoritative testing reports, customized solutions, and accurate quotes! Limited stock available, first come, first served, avoiding project delays; supports small-batch trial orders + large-batch stable supply, adapting to different stage needs. One-time cooperation, lifetime reliability—let ASTM QSN12-2 RG12 Tin Bronze Plates and Blocks safeguard your projects, say goodbye to frequent replacements and cost overruns, improve efficiency, reduce costs, and ensure long-term stability!
